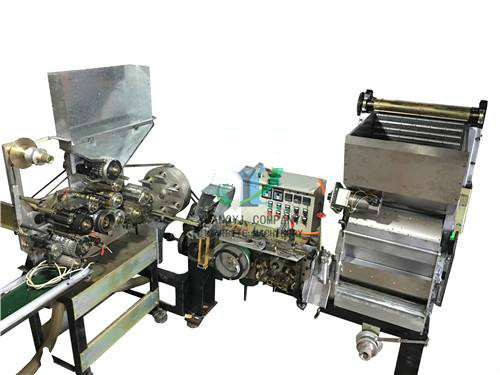

MK8 fully automatic industrial filter cigarette making machine
Maiju Mechanical Equipment Co., Ltd. research and develop one kind of small scale MK8 fully automatic industrial filter cigarette making machine for sale. also called as baby mark8 cigarette machine.
Its capacity is 1000-1500 CPM. its work principle is the same with MOLINS mark 8.it can meet the requirement for who want to setup small cigarette factory.
It adopts the principles of tobacco formation sucked by vacuum and the mean weight control. and becomes a filter-tipped cigarette making machine in a higher medium speed after successful modification from MOLINS MARK 8 cigarette making machine , with stable performance, high working efficiency. so other company call as Baby MK8 cigarette machine.
Main Parameters for MJ-2 small type MK8 fully industrial cigarette making machine:
| Output | 1000-1500cig/min |
| Cigarette Length | 70-99mm |
| Cigarette Diameter | 5.4mm,7.8mm or others |
| Filter Tip Length | 20-30mm |
| Filter Tip Diameter | 5.4-9.0mm |
| Ambient Conditions | 6*105pa |
| Air Pressure | 4*105pa |
| supply Voltage | 380V±22V |
| Lighting Voltage | 50HZ±1HZ |
| Machine Weight | 1100KG |
| Total power | 11KW |
Maiju company is the manufacturer ,supplier and exporter of High Power MK8 Mark 8 Cigarette Making Machine For Filter Tipped Cigarette ,
MK-8 Main Parameters for Mark 8 Cigarette Making Machine For Filter Tipped Cigarette:
| Output | 2000 cig/min |
| Rod Speed | 140-175mm |
| Cut-off Speed | 2000-2500r/min |
| PRODUCT DIMENSION | |
| Filter Cigarette Length | 65-120mm |
| Rod Cigarette Length | 45-90mm |
| Rod Cigarette Diameter | 6.3-9.0mm |
| Filter Plug Length | 60-159mm |
| Filter Tip Length | 15-30mm |
| Filter Tip Diameter | 6.3-9.0mm |
| CorkPaper Length | 13-45mm |
| Ambient Conditions | 6×105pa |
| Air Pressure | 4×105pa |
| Working Pressure | 380±38 V(3 phases) |
| Supply Voltage | 220±22V |
| Supply Voltage | 220±22V |
| Lighting Voltage | 50HZ±1HZ |
| Frequency | |
| MACHINE WEIGHT | |
| Maker | 3050KG |
| Plug Assembler | 1800KG |
| Total power | 17 kw |

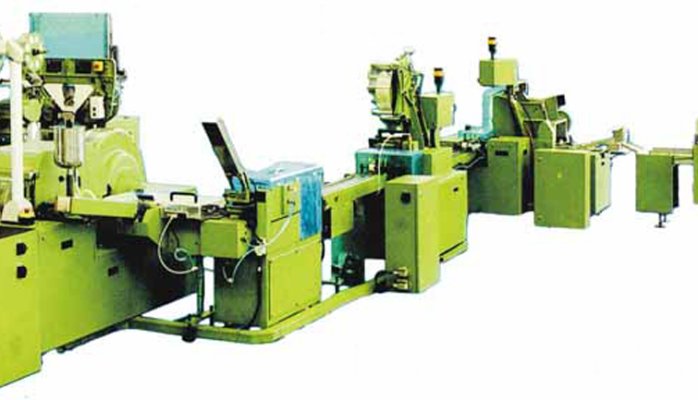

For those small and medium-sized enterprises，to match with the produce speed, the HLP 180 cigarette packing machine is the best choice.

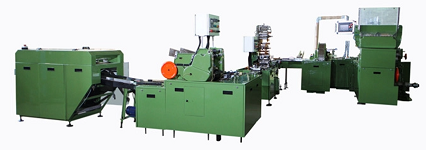

HLP 180 cigarette packing machine is used to pack the cigarettes in length of 84-100mm with different diameter, in different arrangement. It can automatically complete the operations of hinge-lid cardboard packet packing YB43, stamper YTB, wrapping YB59, carton YB69 and carton over wrapper YB99.It copy from Hard box Hinge Lid Packer Hard box Hinge Lid Packer (HLP 2), Mollins WRAPPER MACHINE , BOXER MACHINE , Over Wrapper Machine.
This machine has automatical protecting, testing, ejecting and indicating fault functions, and easy operation and convenient maintenance. It is the ideal cigarette hard packing equipment. About the standard of the products, we can make the various according to the customers' requirements.
HLP2 Technical Parameters for full automatic cigarette packing machine:
| Rated Production Capacity | 180 packets / min |
| Cigarette Standard Length | 84mm |
| Cigarette Standard Diameter | 7.8±0.1mm |
| Circumference | 24±0.3mm |
| Packet Outside Dimension | 87.5×56×23.5mm (Collation 7*6*7) |
| Carton Outside Dimension | 283×88.5×48mm |
| Way of Carton Packing | European Style |
| Power Consumption | 9.92kw |
| Unit Weight | 6150kg |
| Outside Dimension | 8600×6700mm |
You may check the below video for reference.
Maiju are able to supply machinery listed below in as is condition.we also can be the supplier other type cigarette packer,cigarette packing machine.
Some machinery is available for immediate installation, For some reason, usually the machine need about 40-60 days to produce.
